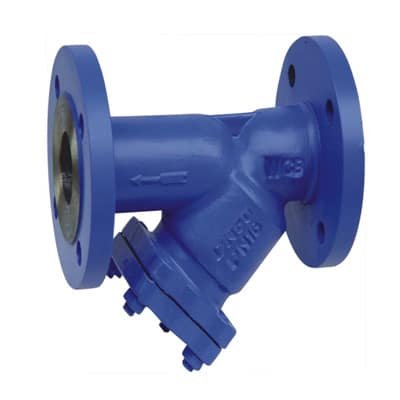

SG41H DIN PN16 Y-förmiger Schmutzfänger
Der Y-Filter SG41H nach DIN PN16 dient zum Entfernen von Feststoffpartikeln und Verunreinigungen aus Wasser-, Klima- und Lüftungsanlagen. Er wird am Einlass von hydraulischen Steuerventilen und anderen Geräten installiert und trägt dazu bei, Verstopfungen zu verhindern, Ventile und Messgeräte zu schützen sowie einen zuverlässigen Anlagenbetrieb zu gewährleisten. Der Schmutzfänger zeichnet sich durch eine bequeme Wartung, hohe Filterleistung sowie eine einfache und zuverlässige Reinigung aus.
Beschreibung
SG41H DIN PN16 Y-förmiger Schmutzfänger
The SG41H DIN PN16 Y-type strainer is designed to remove solid particles,
dirt and impurities from pipelines. It is commonly installed at the inlet
of hydraulic control valves, pumps, meters and other industrial equipment
to prevent blockage and protect downstream components from damage.
This Y-type strainer is also suitable for pre-filtration in air-conditioning
and ventilation systems, cleanroom return-air systems and local high-efficiency
filtration units. It provides convenient operation, high filtration efficiency,
low maintenance requirements and simple, reliable cleaning.
Product Features
- DIN PN16 flanged Y-type strainer design.
- Effectively removes solid particles and pipeline impurities.
- Protects hydraulic control valves, pumps, instruments and other equipment.
- Suitable for water, HVAC and ventilation systems.
- Convenient operation and easy screen cleaning.
- High filtration efficiency with reliable performance.
- Available in DN15 to DN400 sizes.
- Body and screen materials can be selected according to the medium and service conditions.
Technical Specifications
| Produkttyp | DIN PN16 Y-type strainer |
|---|---|
| Modell | SG41H |
| Pressure Rating | PN16 |
| Nominal Size | DN15 to DN400 |
| Connection | DIN flanged ends |
| Applicable Media | Water, air and mildly corrosive industrial media |
| Typische Anwendungsbereiche | Hydraulic control valves, HVAC systems, ventilation systems, cleanrooms, pumps and industrial pipelines |
Drawing
Ordering Information
When requesting a quotation, please provide the nominal diameter, working
pressure, medium, working temperature, body material, screen material,
filtration mesh size and flange standard.
Dimensions, materials, filtration mesh and pressure-temperature limits are
subject to the final WDL Valve technical drawing and approved project
datasheet.
