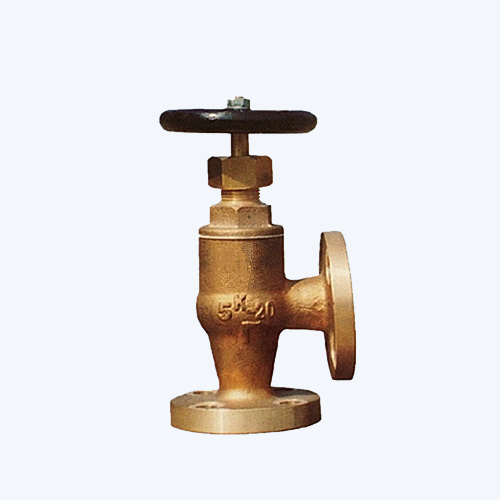

JIS F7352 5K 青铜角型 SDNR 阀
WDL Valve JIS F7352 5K bronze angle SDNR valve combines manual shut-off and automatic non-return functions in one compact marine valve. Its 90-degree angle body is suitable for seawater, steam and compatible oil piping systems.
- Design Standard: JIS F7352
- 阀门类型： Angle SDNR valve
- 额定压力： JIS 5K
- 尺寸范围： DN15–DN65
- 车身材质： Tin bronze
- Connection: JIS 5K flanged ends
- Service Media: Seawater, steam and compatible oil
描述
JIS F7352 5K 青铜角型 SDNR 阀
该 WDL Valve JIS F7352 5K bronze angle SDNR valve is designed for marine piping systems requiring both manual shut-off and reverse-flow prevention. SDNR means screw-down non-return, allowing the valve to operate as an isolation valve while also helping prevent backflow when it is open.
The compact 90-degree angle pattern changes the direction of flow through the valve and can reduce the need for a separate pipe elbow in suitable installations.
技术规格
| 制造商 | 蔚德力阀门 |
|---|---|
| 型号 | JIS F7352 |
| 阀门类型 | Bronze angle screw-down non-return valve |
| 额定压力 | JIS 5K |
| 公称尺寸 | DN15–DN65 (1/2–2 1/2 inch) |
| Body Pattern | 90-degree angle pattern |
| End Connection | JIS 5K flanged ends |
| 操作 | Manual handwheel |
| Service Media | Seawater, steam and compatible oil |
| Service Temperature | Normal temperature; confirm limits for the selected medium |
Main Dimensions
| DN | 尺寸 | L | D | PCD | t | n-d | H | W |
|---|---|---|---|---|---|---|---|---|
| 15 | 1/2″ | 55 | 80 | 60 | 9 | 4-12 | 130 | 80 |
| 20 | 3/4″ | 60 | 85 | 65 | 10 | 4-12 | 140 | 100 |
| 25 | 1″ | 65 | 95 | 75 | 10 | 4-12 | 160 | 125 |
| 32 | 1 1/4″ | 80 | 115 | 90 | 12 | 4-15 | 170 | 125 |
| 40 | 1 1/2″ | 85 | 120 | 95 | 12 | 4-15 | 190 | 140 |
| 50 | 2英寸 | 100 | 130 | 105 | 14 | 4-15 | 235 | 140 |
| 65 | 2 1/2″ | 115 | 155 | 130 | 14 | 4-15 | 260 | 160 |
All dimensions are in millimetres unless otherwise stated.
建筑材料
| 部分 | 材料 | Grade / Mark |
|---|---|---|
| Body and Bonnet | Tin Bronze | ZQSn10-21 |
| Disc and Stem | Aluminum Bronze | QAl9-21 |
| 包装 | PTFE | SFT-2 |
压力测试数据
| Working Pressure | Shell Hydrostatic Test | Seat Hydrostatic Test |
|---|---|---|
| 5 kgf/cm² | 10.5 kgf/cm² | 7.7 kgf/cm² |
How the SDNR Valve Works
The handwheel and stem allow the valve to be closed manually for pipeline isolation. When the valve is opened, the disc can respond to the direction of flow. Forward pressure lifts the disc, while reverse flow pushes it toward the seat to help prevent backflow.
This combination makes the JIS F7352 bronze angle SDNR valve suitable for systems where both an isolation valve and a non-return valve would otherwise be required.
Key Features
- Manual shut-off and automatic non-return functions
- Compact 90-degree angle body configuration
- Tin bronze body and bonnet
- JIS 5K flanged connections
- Available from DN15 to DN65
- Suitable for marine and shipbuilding applications
- Pressure testing performed before delivery
典型应用
- Marine seawater piping systems
- Freshwater and cooling-water pipelines
- Steam service within approved operating limits
- Fuel oil and lubricating oil systems
- Pump discharge pipelines
- Shipbuilding and offshore equipment
订购信息
When requesting a quotation, please provide the valve model, nominal size, service medium, operating pressure, operating temperature, quantity and required inspection documents.
Final dimensions, materials and pressure-temperature ratings are subject to the approved WDL Valve technical datasheet.
