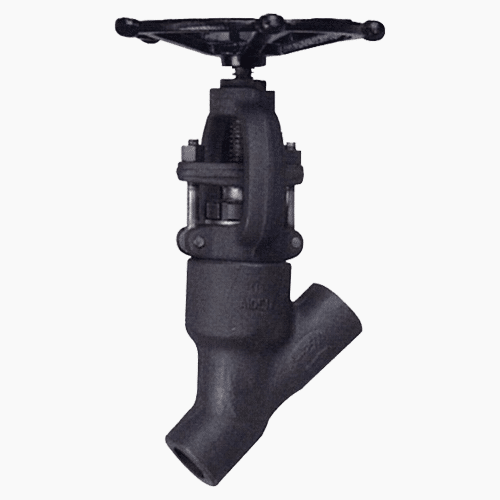

J65Y Y-Type Forged Steel Globe Valve
J65Y Y-type forged steel globe valve is designed for high-pressure and high-temperature service. Its streamlined Y-pattern body reduces flow resistance, while bolted or welded bonnet designs provide reliable sealing. Available in carbon steel, alloy steel and stainless steel for water, steam, oil and selected chemical media.
Description
J65Y Y-Type Forged Steel Globe Valve
The J65Y Y-type forged steel globe valve is designed for high-pressure and
high-temperature industrial pipeline service. Its Y-pattern body provides a
more streamlined flow passage and helps reduce pressure loss compared with
conventional globe valve designs.
The valve is available with different bonnet configurations, including bolted
bonnet and welded bonnet designs. The bolted bonnet version uses a 304 stainless
steel and flexible graphite spiral-wound gasket. The welded bonnet version uses
a threaded body-to-bonnet connection with a pressure-assisted self-sealing ring.
Metal-ring sealing can also be supplied according to customer requirements.
Y-type forged steel valves can be designed as globe valves or check valves.
They are suitable for water, steam, oil products, nitric acid, acetic acid and
other industrial media.
Applicable Standards
- Design and manufacture: ANSI B16.34
- Inspection and testing: API 598
- Marking: MSS SP-25
- Socket-welding ends: ASME B16.11
- NPT threaded ends: ANSI/ASME B1.20.1
Main Features
- Y-pattern forged steel construction.
- Reduced flow resistance and pressure loss.
- Available with bolted or welded bonnet construction.
- Pressure-assisted self-sealing bonnet option.
- Suitable for high-pressure and high-temperature service.
- Available in carbon steel, alloy steel and stainless steel.
- Can be supplied as a globe valve or check valve.
- Other materials and sealing combinations are available upon request.
Standard Materials
| No. | Part Name | Carbon Steel ASTM | Alloy Steel ASTM | Stainless Steel 304 ASTM | Stainless Steel 316 ASTM |
|---|---|---|---|---|---|
| 1 | Valve Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Disc | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | Gasket | Corrugated stainless steel + graphite | Stainless steel + PTFE | — | — |
| 5 | Bonnet | A105 | A276 304 | A276 304(L) | A276 316(L) |
| 6 | Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 7 | Packing | Flexible graphite | PTFE | — | — |
| 8 | Packing Gland | A276 410 | A182 F304(L) | A182 F316(L) | — |
| 9 | Packing Plate | A216 WCB | A351 CF8 | — | — |
| 10 | Handwheel | A197 | — | — | — |
| 11 | Nameplate | Stainless steel | — | — | — |
| 12 | Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 13 | Stem Nut | A276 410 | — | — | — |
| 14 | Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 15 | Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 16 | Pin | A276 420 | A276 304 | — | — |
Applicable Media and Temperature
| Material Group | Applicable Media | Temperature Range |
|---|---|---|
| Carbon Steel | Water, steam and oil products | -29°C to +425°C |
| Alloy Steel | Water, steam and oil products | -29°C to +550°C |
| Stainless Steel | Nitric acid, acetic acid and other selected media | -29°C to +180°C |
Dimensions and Weight — Class 800
| NPS | L (mm) | H Open (mm) | W (mm) | Weight (kg) |
|---|---|---|---|---|
| 1/2 | 98 | 175 | 100 | 5.0 |
| 3/4 | 111 | 215 | 125 | 6.3 |
| 1 | 120 | 254 | 160 | 7.6 |
| 1-1/4 | 140 | 305 | 160 | 9.8 |
| 1-1/2 | 140 | 305 | 180 | 13.8 |
| 2 | 170 | 365 | 200 | 14.0 |
Other materials and sealing combinations are available according to customer requirements. CS means carbon steel, AS means alloy steel and SS means stainless steel. Final dimensions, materials and pressure-temperature limits are subject to the approved WDL Valve technical drawing and project datasheet.
