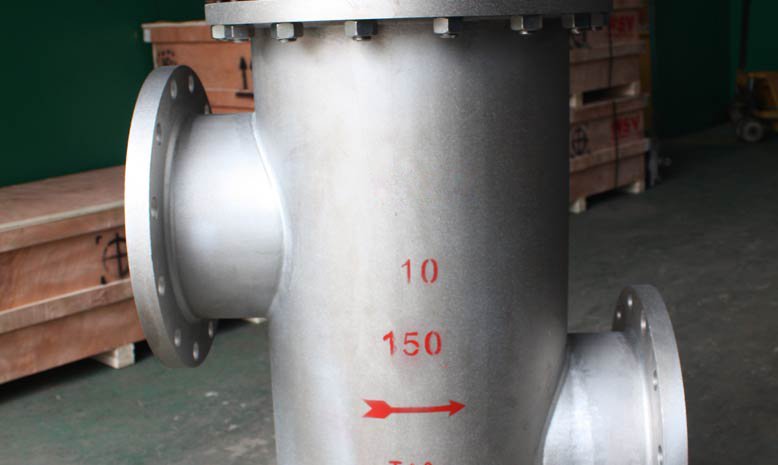

Titanium Strainer
WDL Titanium Strainer provides removal of pipeline solids before pumps, instruments or valves for seawater and desalination plants and chlor-alkali processing. Connections, trim and operation are selected to the project conditions.
Description
Titanium Strainer
WDL Titanium Strainer provides removal of pipeline solids before pumps, instruments or valves for process systems that need corrosion resistance in seawater, chlorides and many oxidizing media. Titanium forms a stable passive film in many chloride-rich and oxidizing process streams.
Design Options
| Item | Available specification |
|---|---|
| Material | Titanium Grade 2, 3, 5, 7, 12 or project grade |
| Function | removal of pipeline solids before pumps, instruments or valves |
| Connections | Flanged, threaded or welded |
| Operation | Removable screen with drain or blowdown connection |
| Design basis | ASME B16.34, pressure-piping requirements or project standard |
Typical Applications
- Seawater and desalination plants
- Chlor-alkali processing
- Hypochlorite service
- Pump and equipment protection
- Process solids removal
Selection Notes
Dry chlorine, hydrofluoric acid and strongly reducing media require separate review; titanium is not universal for every acid.
Specify mesh or perforation size, allowable pressure drop, cleaning method and expected solids loading.
Frequently Asked Questions
Why select Titanium for this industrial strainer?
Titanium forms a stable passive film in many chloride-rich and oxidizing process streams. Final suitability depends on the complete process conditions and the selected valve trim.
What information is needed for selection?
Provide the size, pressure rating, medium composition, concentration, temperature, connection standard, operating method and required quantity.
Send the process datasheet to WDL for material review, dimensional confirmation and quotation.
