Zirconium Ball Valve
WDL Zirconium Ball Valve provides quarter-turn isolation with a direct flow path and tight shutoff for acetic and formic acid processing and selected sulfuric acid systems. Connections, trim and operation are selected to the project conditions.
Description

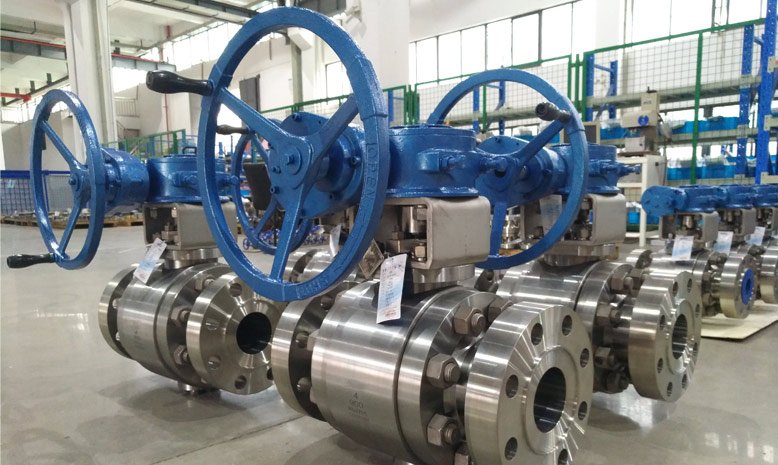

Zirconium Ball Valve
WDL Zirconium Ball Valve provides quarter-turn isolation with a direct flow path and tight shutoff for process systems that need resistance to many strong acids and corrosive chemical mixtures. Zirconium is used for severe acid duties where stainless steels and many nickel alloys cannot provide an acceptable corrosion rate.
Design Options
| Item | Available specification |
|---|---|
| Material | Zirconium 702, 705 or project-specified grade |
| Function | quarter-turn isolation with a direct flow path and tight shutoff |
| Connections | Flanged, threaded, socket-welded or butt-welded |
| Operation | Lever, gearbox, pneumatic or electric actuator |
| Design basis | API 608, API 6D, ASME B16.34 or project standard |
Typical Applications
- Acetic and formic acid processing
- Selected sulfuric acid systems
- Chemical reactors and transfer lines
- Tight process isolation
- Automated emergency or batch shutoff
Selection Notes
Fluoride-containing media, hydrofluoric acid and some oxidizing halides require special review because they can attack zirconium.
Confirm floating or trunnion design, cavity relief, seat material, fire-safe requirement and bore size.
Frequently Asked Questions
Why select Zirconium for this ball valve?
Zirconium is used for severe acid duties where stainless steels and many nickel alloys cannot provide an acceptable corrosion rate. Final suitability depends on the complete process conditions and the selected valve trim.
What information is needed for selection?
Provide the size, pressure rating, medium composition, concentration, temperature, connection standard, operating method and required quantity.
Send the process datasheet to WDL for material review, dimensional confirmation and quotation.
