SH41W ASME Y型过滤器

SH41W ASME Y型过滤器

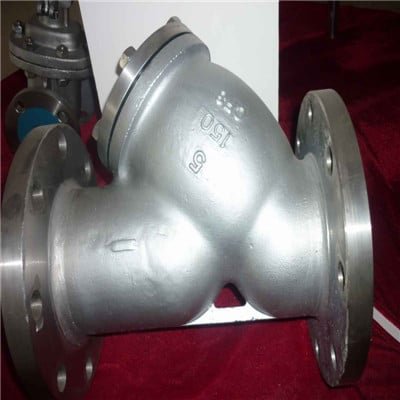

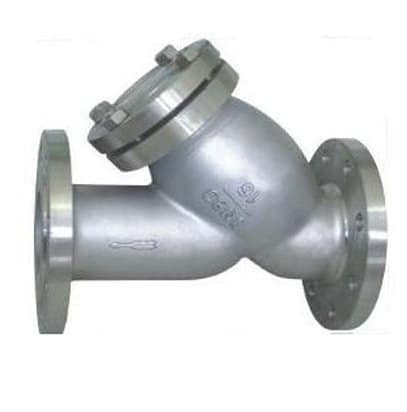

SH41W ASME Y-type strainer is an in-line filtration device designed to remove solid particles from liquids, steam, air, kerosene, water and mildly corrosive gases or liquids. It helps protect compressors, pumps, meters, instruments and other downstream equipment from damage, while supporting stable process operation and reliable system performance.

The straight-through flow path provides low pressure loss. The strainer screen offers effective dirt-holding capacity, and the blowdown cover allows collected debris to be removed conveniently during maintenance. The valve body, screen material and connection dimensions can be selected according to the medium, pressure, temperature and project requirements.

Product Features

• Y-type body design for efficient removal of solid particles.
• Suitable for horizontal or vertical pipeline installation, subject to the flow direction and project layout.
• Low pressure loss due to the streamlined flow passage.
• Convenient screen cleaning and residue discharge.
• Suitable for steam, air, kerosene, water and mildly corrosive media.
• Screen mesh, body material, gasket and drain connection can be customized.
• Available with ASME Class 150 and Class 300 flanged ends.

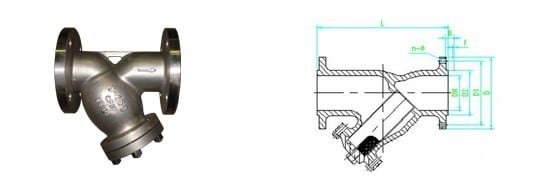

Drawing

技术规格

适用标准

Main Dimensions — Class 150

Main Dimensions — Class 300

典型应用

• Steam and condensate systems
• Water treatment and industrial water pipelines
• Oil and kerosene transfer lines
• Compressed air and gas systems
• Pump, compressor and instrument protection
• Chemical process lines handling mildly corrosive media

订购信息

When requesting a quotation, please provide the nominal size, pressure class, medium, working temperature, body and screen materials, mesh size, flange standard, drain arrangement and any special inspection requirements.

Dimensions, materials, screen configuration and pressure-temperature limits are subject to the final WDL Valve technical drawing and approved project datasheet.
