YJ41W 氧气截止阀
YJ41W oxygen globe valve is specially designed for oxygen pipeline isolation in steel, metallurgy, petrochemical and chemical plants. It features strict oil-free manufacturing, complete degreasing, conductive connection holes and protected surfaces to reduce the risk of oil contamination and static electricity.
描述
YJ41W 氧气截止阀

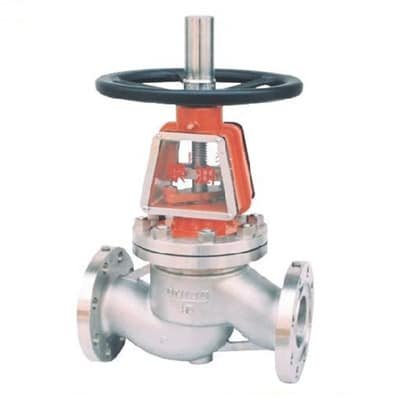

The YJ41W oxygen globe valve is specially designed for oxygen pipeline systems.
It is mainly used to connect or isolate oxygen and is not normally used for flow
throttling. The valve is widely applied in oxygen service systems for steel
plants, metallurgy, petrochemical plants and chemical processing facilities.
The valve is manufactured under strict oil-free procedures. All components are
thoroughly degreased before assembly to prevent oil and grease contamination.
Conductive threaded holes are provided on the flanged ends of the valve to help
prevent static electricity. Exposed parts are protected against dust and oil
contamination during storage, installation and operation.
The YJ41W oxygen globe valve is available with cast silicon-brass or high-quality
stainless-steel body, bonnet and disc materials. It is suitable for oxygen
pipeline isolation under normal-temperature service.
主要特点
- Specially designed for oxygen pipeline systems.
- Strict oil-free manufacturing and degreasing procedures.
- Conductive threaded holes help prevent static electricity.
- Protective treatment prevents dust and oil contamination.
- Available in cast silicon brass and stainless steel materials.
- Reliable shut-off performance for oxygen service.
- Suitable for steel, metallurgy, petrochemical and chemical industries.
- Designed for isolation rather than continuous flow regulation.
适用标准
| 项目 | 标准 |
|---|---|
| 设计与制造 | GB/T 12235 |
| 法兰尺寸 | GB 9113 |
| 面对面的维度 | GB/T 12221 |
| 检验与测试 | GB/T 13927 |
Performance Parameters
| 型号 | 公称压力 (MPa) | Shell Test Pressure Ps (MPa) | Gas Seal Test (MPa) | 温度 | Medium | |
|---|---|---|---|---|---|---|
| Water | Air | |||||
| YJ41W-25P / YJ41W-40P | 2.5 | 3.8 | 2.5 | 2.5 | Ambient temperature | Oxygen |
Main Dimensions and Weight
| DN | L | D | D1 | D2 | D6 | b | f | fz | z-Ød | Dz | i | H | D0 | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 130 | 95 | 65 | 45 | 40 | 16 | 2 | 4 | 4-Ø14 | 82 | 10 | 202 | 100 | 5 |
| 20 | 150 | 105 | 75 | 55 | 51 | 16 | 2 | 4 | 4-Ø14 | 95 | 13 | 225 | 100 | 6.5 |
| 25 | 160 | 115 | 85 | 65 | 58 | 16 | 2 | 4 | 4-Ø14 | 98 | 15 | 236 | 125 | 7 |
| 32 | 190 | 135 | 100 | 78 | 66 | 18 | 2 | 4 | 4-Ø18 | 120 | 28 | 312 | 180 | 13.5 |
| 40 | 200 | 145 | 110 | 85 | 76 | 18 | 3 | 4 | 4-Ø18 | 135 | 20 | 328 | 160 | 16 |
| 50 | 230 | 160 | 125 | 100 | 88 | 20 | 3 | 4 | 4-Ø18 | 160 | 25 | 450 | 320 | 32 |
| 65 | 290 | 180 | 145 | 120 | 110 | 22 | 3 | 4 | 8-Ø18 | 180 | 30 | 530 | 360 | 45 |
| 80 | 310 | 195 | 160 | 135 | 121 | 22 | 3 | 4 | 8-Ø18 | 195 | 32 | 560 | 400 | 60 |
| 100 | 350 | 230 | 190 | 160 | 150 | 24 | 3 | 4.5 | 8-Ø23 | 230 | 40 | 618 | 450 | 80 |
| 125 | 400 | 270 | 220 | 188 | 176 | 28 | 3 | 4.5 | 8-Ø25 | 275 | 42 | 675 | 450 | 105 |
| 150 | 480 | 300 | 250 | 218 | 204 | 30 | 3 | 4.5 | 8-Ø25 | 330 | 50 | 743 | 560 | 134 |
| 200 | 600 | 375 | 320 | 282 | 260 | 38 | 3 | 4.5 | 12-Ø30 | 405 | 55 | 850 | 640 | 266 |
| 250 | 650 | 445 | 385 | 345 | 313 | 42 | 3 | 4.5 | 12-Ø34 | 480 | 88 | 975 | 720 | 491 |
| 300 | 750 | 510 | 450 | 408 | 364 | 46 | 4 | 4.5 | 16-Ø34 | 520 | 100 | 1115 | 800 | 705 |
| 400 | 950 | 655 | 585 | 535 | 474 | 58 | 4 | 5 | 16-Ø41 | 650 | 140 | 1425 | 900 | 1234 |
典型应用
- Oxygen pipelines in steel plants
- Metallurgical oxygen systems
- 石化厂
- Chemical processing facilities
- Industrial oxygen distribution systems
Oxygen-service valves must be handled, cleaned, installed and operated according to the approved oxygen-service procedure. The valve must be kept free from oil,grease, dust and other combustible contaminants.
