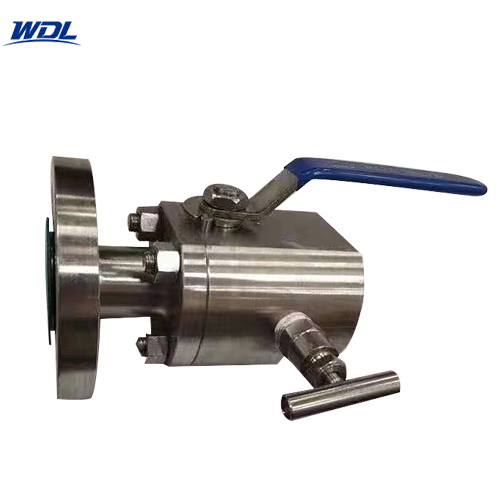

1-1/2 Inch Class 300 F316L Forged SBB Ball Valve
WDL Valve 1-1/2 inch Class 300 F316L forged SBB ball valve integrates a main isolation ball valve and a bleed valve into one compact assembly. The forged stainless steel body provides reliable isolation for instrumentation, chemical, oil and gas piping systems.
- Model: Q41F
- Configuration: Single Block and Bleed (SBB)
- Nominal Size: 1-1/2 inch
- Pressure Rating: ASME Class 300
- Body Material: ASTM A182 F316L
- Operation: Manual lever with needle-type bleed valve
- Construction: Compact forged monoflange design
Description
1-1/2 Inch Class 300 F316L Forged SBB Ball Valve
The WDL Valve F316L forged SBB ball valve combines a primary isolation ball valve and a bleed valve in one compact assembly. SBB means single block and bleed, a valve arrangement used to isolate the process line and safely release residual pressure from the downstream or instrument side.
This 1-1/2 inch Class 300 valve features a corrosion-resistant forged stainless steel body, quarter-turn lever operation and an integrated needle-type bleed valve. Its compact construction helps reduce installation space, pipe fittings and potential external leakage points.
Technical Specifications
| Manufacturer | WDL Valve |
|---|---|
| Product Type | Single block and bleed ball valve |
| Model | Q41F |
| Abbreviation | SBB – Single Block and Bleed |
| Nominal Size | 1-1/2 inch |
| Pressure Rating | ASME Class 300 |
| Body Material | ASTM A182 F316L forged stainless steel |
| Main Valve | Quarter-turn ball valve |
| Bleed Valve | Needle-type manual bleed valve |
| Operation | Manual lever |
| Body Construction | Compact forged monoflange construction |

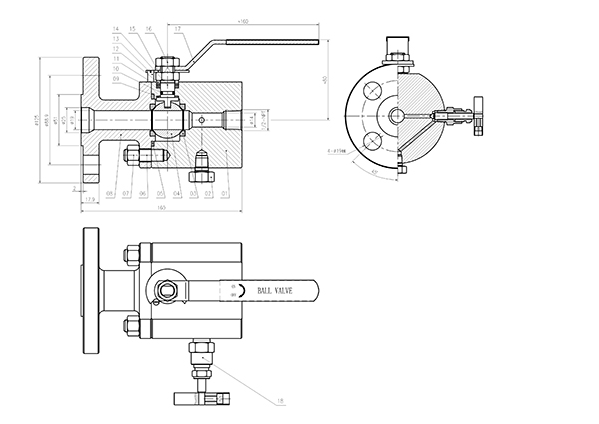

| Overall Body Length | Approximately 165 mm according to the supplied drawing |
Main Functions
| Function | Description |
|---|---|
| Block | The main ball valve isolates the process medium using a 90-degree quarter-turn operation. |
| Bleed | The integrated needle valve releases trapped pressure or drains residual process fluid from the isolated side. |
| Instrument Connection | Provides a compact connection between the process pipeline and pressure-measuring or sampling equipment. |
Material and Construction
| Component | Material / Construction |
|---|---|
| Valve Body | ASTM A182 F316L forged stainless steel |
| Ball and Wetted Trim | Stainless steel; final material according to the approved datasheet |
| Valve Seat | Soft seat; final seat material selected according to the service medium and temperature |
| Main Operator | Stainless steel manual lever |
| Bleed Operator | Manual T-handle needle valve |
How the SBB Ball Valve Works
Rotating the main lever through 90 degrees opens or closes the ball valve. Once the main valve has been closed, the operator can carefully open the integrated bleed valve to release trapped pressure or drain residual fluid from the isolated section.
Integrating the block and bleed functions into one forged assembly can replace a conventional arrangement consisting of a separate ball valve, needle valve, flange and connecting pipework.
Key Product Features
- Single block and bleed functions integrated into one assembly
- ASTM A182 F316L forged stainless steel body
- ASME Class 300 pressure rating
- Quarter-turn ball valve for fast isolation
- Needle-type bleed valve for controlled pressure release
- Compact monoflange design requiring less installation space
- Reduced number of piping connections and potential leakage points
- Suitable for instrument isolation, sampling and pressure measurement
Typical Applications
- Pressure gauges and pressure transmitters
- Oil and gas processing systems
- Petrochemical and chemical plants
- Sampling and injection systems
- Offshore platforms and marine equipment
- Process instrumentation connections
- Corrosive fluid applications compatible with F316L
Ordering Information
When requesting a quotation, please provide the nominal size, pressure class, flange facing, outlet thread standard, bore size, service medium, operating pressure, operating temperature and required seat material.
Connection dimensions, internal materials, seat material and pressure-temperature ratings are subject to the final approved WDL Valve drawing and technical datasheet.
