J41H ASME Flanged Globe Valve
J41H ASME flanged globe valve is designed for reliable shut-off and flow control in Class 150, 300 and 600 pipeline systems. With a strong bolted bonnet structure, backseat design and selectable body materials, it is suitable for water, steam, oil, nitric acid, acetic acid and other industrial media.
Description
Product Overview
J41H ASME flanged globe valve is designed for shut-off and flow control service in ASME pipeline systems. WDL Valve supplies this valve in Class 150, Class 300 and Class 600 pressure ratings, with flanged ends, bolted bonnet construction and reliable sealing performance for a wide range of industrial applications.
The valve body and bonnet are designed with good strength, rigidity and flow capacity. The bonnet is equipped with a backseat structure, which helps improve packing sealing reliability when the valve is fully open and makes packing maintenance more convenient. Packing and gasket materials can be selected according to actual working conditions or customer requirements.
By selecting suitable body, trim, packing and gasket materials, the J41H globe valve can be used for water, steam, oil, nitric acid, acetic acid, strong oxidizing media, urea and other industrial media. Operation options include handwheel, bevel gear and electric actuator.
Working Principle
The opening and closing part of the J41H globe valve is a plug-type disc. The sealing surface can be flat or conical, and the disc moves linearly along the centerline of the flow passage. This structure provides reliable shut-off performance and better throttling control than many straight-through isolation valves.
Key Product Features
- Compact and reasonable structure with stable sealing performance.
- Suitable for shut-off and flow regulation service.
- Backseat design improves packing sealing reliability in the fully open position.
- Medium and large size valves can be equipped with rolling bearings for easier operation.
- Multiple flange sealing face options are available to meet different project requirements.
- Body, trim, packing and gasket materials can be selected according to pressure, temperature and medium.
- Available with handwheel, bevel gear or electric actuator operation.
Technical Specifications
| Manufacturer | WDL Valve |
|---|---|
| Product Type | ASME flanged globe valve |
| Model | J41H-150LB, J41H-300LB, J41H-600LB |
| Pressure Rating | ASME Class 150, Class 300, Class 600 |
| Connection | RF flanged ends |
| Body Material | Carbon steel, stainless steel or other materials upon request |
| Temperature Range | -29°C to +425°C for carbon steel; -40°C to +500°C for stainless steel, depending on material and sealing configuration |
| Operation | Handwheel, bevel gear or electric actuator |
| Applicable Media | Water, steam, oil, nitric acid, acetic acid, oxidizing media, urea and other industrial media |
Applicable Standards
| Design and Manufacture | Face-to-Face / End-to-End | Flange Dimension | Butt Welding Dimension | Pressure-Temperature Rating | Inspection and Test |
|---|---|---|---|---|---|
| ASME B16.34 / BS 1873 | ASME B16.10 | ASME B16.5 | ASME B16.25 | ASME B16.34 | API 598 |
Pressure Test Data
| Nominal Pressure Class | Shell Test | Water Seal Test | Air Seal Test | |||
|---|---|---|---|---|---|---|
| MPa | lbf/in2 | MPa | lbf/in2 | MPa | lbf/in2 | |
| 150 | 3.0 | 430 | 2.2 | 315 | 0.4-0.7 | 60-100 |
| 300 | 7.7 | 1110 | 5.7 | 815 | 0.4-0.7 | 60-100 |
| 600 | 15.3 | 2220 | 11.3 | 1630 | 0.4-0.7 | 60-100 |
| 900 | 23.0 | 3330 | 17.0 | 2445 | 0.4-0.7 | 60-100 |
| 1500 | 38.4 | 5560 | 28.2 | 4080 | 0.4-0.7 | 60-100 |
| 2500 | 64.0 | 9255 | 47.0 | 6790 | 0.4-0.7 | 60-100 |

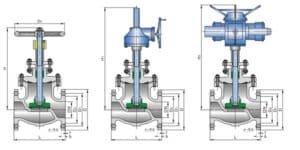

Main Dimensions and Weight
Replace the image URL above with your own WDL Valve product drawing image URL.
Class 150 RF Flange Dimensions
| DN | Class 150 RF Main Dimensions (mm) | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | L | D | D1 | D2 | b | n-phi d | H | D0 | |
| 15 | 1/2 | 108 | 89 | 60.5 | 35 | 11.2 | 4-16 | 241 | 100 | 6.9 |
| 20 | 3/4 | 117 | 98 | 69.9 | 43 | 12.7 | 4-16 | 241 | 100 | 9.8 |
| 25 | 1 | 127 | 108 | 79.2 | 51 | 14.2 | 4-16 | 242 | 125 | 13.5 |
| 32 | 1 1/4 | 140 | 117 | 89 | 63 | 16 | 4-16 | 280 | 160 | 19.5 |
| 40 | 1 1/2 | 165 | 127 | 98.6 | 73 | 17.5 | 4-16 | 286 | 160 | 28.5 |
| 50 | 2 | 203 | 152 | 120.7 | 92 | 19 | 4-19 | 368 | 200 | 18 |
| 65 | 2 1/2 | 216 | 178 | 139.7 | 105 | 22.4 | 4-19 | 387 | 200 | 30 |
| 80 | 3 | 241 | 190 | 152.4 | 127 | 24 | 4-19 | 411 | 250 | 41 |
| 100 | 4 | 292 | 229 | 190.5 | 157 | 24 | 4-19 | 454 | 250 | 64 |
| 125 | 5 | 356 | 254 | 216.0 | 186 | 24 | 8-22.5 | 455 | 350 | 86 |
| 150 | 6 | 406 | 279 | 241.3 | 216 | 25.4 | 8-22.5 | 541 | 350 | 113 |
| 200 | 8 | 495 | 343 | 298.5 | 270 | 28.4 | 8-22.5 | 651 | 450 | 178 |
| 250 | 10 | 622 | 406 | 362.0 | 324 | 30.2 | 12-25.4 | 800 | 450 | 270 |
| 300 | 12 | 698 | 483 | 431.8 | 381 | 32 | 12-25.4 | 1231 | 600 | 350 |
| 350 | 14 | 787 | 533 | 476.3 | 413 | 35 | 12-29 | 1450 | 600 | 460 |
| 400 | 16 | 914 | 597 | 539.8 | 470 | 36.6 | 26-29 | 1645 | 600 | 590 |
Class 300 RF Flange Dimensions
| DN | Class 300 RF Main Dimensions (mm) | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | L | D | D1 | D2 | b | n-phi d | H | D0 | |
| 15 | 1/2 | 152 | 95 | 66.5 | 35 | 14.2 | 4-16 | 241 | 140 | 7.7 |
| 20 | 3/4 | 178 | 117 | 82.5 | 43 | 16 | 4-19 | 241 | 140 | 11.3 |
| 25 | 1 | 203 | 123 | 89 | 51 | 17.5 | 4-19 | 283 | 160 | 16.8 |
| 32 | 1 1/4 | 216 | 133 | 98.5 | 63 | 19 | 4-19 | 320 | 200 | 21.2 |
| 40 | 1 1/2 | 229 | 155 | 114.3 | 73 | 20.6 | 4-22.5 | 322 | 200 | 32.6 |
| 50 | 2 | 267 | 165 | 127 | 92 | 22.4 | 8-19 | 399 | 200 | 25 |
| 65 | 2 1/2 | 292 | 190 | 149.4 | 105 | 25.4 | 8-22.5 | 438 | 250 | 30 |
| 80 | 3 | 318 | 210 | 168.1 | 127 | 28.4 | 8-22.5 | 464 | 280 | 35 |
| 100 | 4 | 356 | 254 | 200.2 | 157 | 31.8 | 8-22.5 | 565 | 350 | 56 |
| 125 | 5 | 400 | 279 | 235 | 186 | 35 | 8-22.5 | 614 | 350 | 96 |
| 150 | 6 | 444 | 318 | 269.7 | 216 | 36.6 | 12-25.4 | 717 | 400 | 120 |
| 200 | 8 | 559 | 381 | 330.2 | 270 | 41.2 | 12-25.4 | 930 | 500 | 212 |
| 250 | 10 | 622 | 444 | 387.4 | 324 | 47.8 | 16-28.5 | 1012 | 550 | 330 |
| 300 | 12 | 711 | 521 | 450.8 | 381 | 50.8 | 16-32 | 1231 | 600 | 472 |
| 350 | 14 | 762 | 584 | 514.4 | 413 | 54 | 20-32 | 1450 | 600 | 715 |
| 400 | 16 | 864 | 648 | 571.5 | 470 | 57.2 | 20-35 | 1645 | 600 | 920 |
Class 600 RF Flange Dimensions
| DN | Class 600 RF Main Dimensions (mm) | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | L | D | D1 | D2 | b | n-phi d | H | D0 | |
| 15 | 1/2 | 165 | 95 | 66.5 | 35 | 14.5 | 4-16 | 285 | 100 | 7.8 |
| 20 | 3/4 | 190 | 117 | 82.5 | 43 | 16 | 4-19 | 285 | 125 | 12.5 |
| 25 | 1 | 216 | 124 | 89 | 51 | 17.5 | 4-19 | 313 | 160 | 17.5 |
| 32 | 1 1/4 | 229 | 133 | 98.5 | 63 | 21 | 4-19 | 328 | 160 | 23.5 |
| 40 | 1 1/2 | 241 | 156 | 114.3 | 73 | 22.5 | 4-22.5 | 365 | 180 | 38.5 |
| 50 | 2 | 292 | 165 | 127 | 92 | 33 | 8-19 | 444 | 200 | 35 |
| 65 | 2 1/2 | 330 | 190 | 149.4 | 105 | 36 | 8-22.5 | 483 | 250 | 50 |
| 80 | 3 | 356 | 210 | 168.1 | 127 | 39 | 8-22.5 | 533 | 250 | 60 |
| 100 | 4 | 432 | 273 | 216 | 157 | 45 | 8-25.4 | 622 | 350 | 110 |
| 125 | 5 | 508 | 330 | 266.7 | 186 | 52 | 8-28.5 | 750 | 350 | 200 |
| 150 | 6 | 559 | 356 | 292.1 | 216 | 55 | 12-28.5 | 800 | 450 | 230 |
| 200 | 8 | 660 | 419 | 349.3 | 270 | 63 | 12-32 | 927 | 500 | 410 |
| 250 | 10 | 787 | 508 | 431.8 | 324 | 71 | 16-35 | 1257 | 600 | 625 |
| 300 | 12 | 838 | 559 | 489 | 381 | 74 | 20-35 | 1468 | 680 | 860 |
Typical Applications
- Steam and condensate pipelines
- Oil and gas process systems
- Chemical and petrochemical plants
- Water and industrial utility systems
- Nitric acid, acetic acid and urea service, depending on selected material
- General shut-off and throttling service in ASME pipeline systems
Ordering Information
When requesting a quotation, please provide the valve size, pressure class, body material, trim material, medium, working temperature, flange standard, operation type and any special inspection or testing requirements.
Dimensions, materials, pressure-temperature limits and operation options are subject to the final WDL Valve technical drawing and approved project datasheet.
