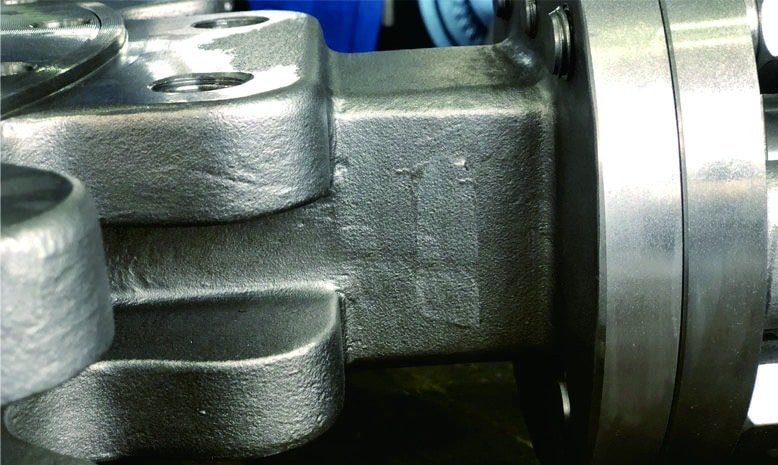

Tantalum Butterfly Valve
WDL Tantalum Butterfly Valve provides compact quarter-turn isolation or flow regulation for hydrochloric acid equipment and sulfuric acid process lines. Connections, trim and operation are selected to the project conditions.
Description
Tantalum Butterfly Valve
WDL Tantalum Butterfly Valve provides compact quarter-turn isolation or flow regulation for process systems that need acid resistance in selected highly corrosive chemical processes. Tantalum-wetted construction is considered for severe acid service when corrosion allowance is not an acceptable solution.
Design Options
| Item | Available specification |
|---|---|
| Material | Tantalum-wetted or project-specified construction |
| Function | compact quarter-turn isolation or flow regulation |
| Connections | Wafer, lugged or double-flanged |
| Operation | Lever, gearbox, pneumatic or electric actuator |
| Design basis | API 609, EN 593, API 598 or EN 12266-1 |
Typical Applications
- Hydrochloric acid equipment
- Sulfuric acid process lines
- Acid recovery systems
- Large-diameter process pipelines
- Automated isolation and control loops
Selection Notes
Hydrofluoric acid, fluoride salts and strong alkaline media require separate compatibility review and are not default tantalum applications.
Specify shutoff direction, seat material, flange standard, solids content and required operating torque.
Frequently Asked Questions
Why select Tantalum for this butterfly valve?
Tantalum-wetted construction is considered for severe acid service when corrosion allowance is not an acceptable solution. Final suitability depends on the complete process conditions and the selected valve trim.
What information is needed for selection?
Provide the size, pressure rating, medium composition, concentration, temperature, connection standard, operating method and required quantity.
Send the process datasheet to WDL for material review, dimensional confirmation and quotation.
