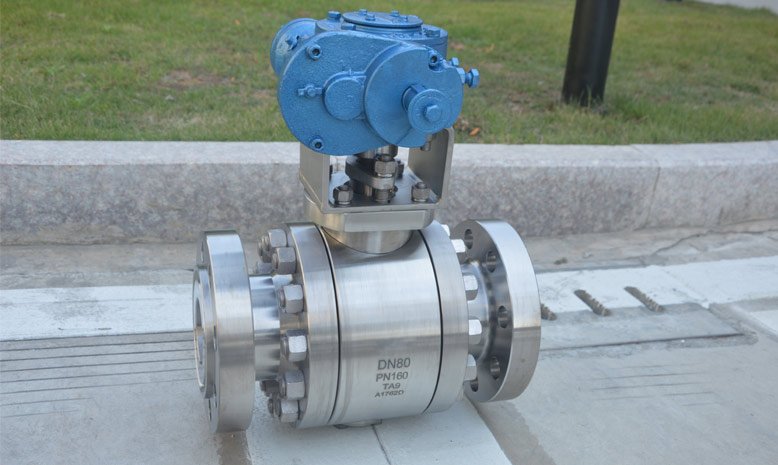

Titanium Ball Valve
WDL Titanium Ball Valve provides quarter-turn isolation with a direct flow path and tight shutoff for seawater and desalination plants and chlor-alkali processing. Connections, trim and operation are selected to the project conditions.
Description
Titanium Ball Valve
WDL Titanium Ball Valve provides quarter-turn isolation with a direct flow path and tight shutoff for process systems that need corrosion resistance in seawater, chlorides and many oxidizing media. Titanium forms a stable passive film in many chloride-rich and oxidizing process streams.
Design Options
| Item | Available specification |
|---|---|
| Material | Titanium Grade 2, 3, 5, 7, 12 or project grade |
| Function | quarter-turn isolation with a direct flow path and tight shutoff |
| Connections | Flanged, threaded, socket-welded or butt-welded |
| Operation | Lever, gearbox, pneumatic or electric actuator |
| Design basis | API 608, API 6D, ASME B16.34 or project standard |
Typical Applications
- Seawater and desalination plants
- Chlor-alkali processing
- Hypochlorite service
- Tight process isolation
- Automated emergency or batch shutoff
Selection Notes
Dry chlorine, hydrofluoric acid and strongly reducing media require separate review; titanium is not universal for every acid.
Confirm floating or trunnion design, cavity relief, seat material, fire-safe requirement and bore size.
Frequently Asked Questions
Why select Titanium for this ball valve?
Titanium forms a stable passive film in many chloride-rich and oxidizing process streams. Final suitability depends on the complete process conditions and the selected valve trim.
What information is needed for selection?
Provide the size, pressure rating, medium composition, concentration, temperature, connection standard, operating method and required quantity.
Send the process datasheet to WDL for material review, dimensional confirmation and quotation.
